1BZDZ/1BZNDZ series wing folded heavy-duty contraposition hydraulic disc harrow

Product introduction：
1BZDZ series wing-folded heavy-duty contraposition hydraulic harrow are constructed around a central robust mono frame, can be installed by 32-66 discs，divided into front and rear two gangs notched disc，Suitable for destroying, sticky heavy soils, low wetland, straw, corn crop land or land area of high crop plow before stubble plowing. After the broken soil or no-till blade be replacing plow，The harrows have 230mm and 240㎜, 270mm three varieties disc space for choices，Different disc spacing different effect: 230mm and 240㎜suitable for multi-purpose，-270mm suitable for deep coarse plow stubble plowing，or without the plow surface farming.
The series disc harrow each component meticulously design，Install the connection is solid and reliable，In the process of operation，It can be saw the every part of working conditions clearly， The dislocation of the design for front and rear disc gang, and disc gang on both sides of X to disc overall symmetrical，work Angle can be adjusted. rear disc gang on each side pack 1 piece to fill out the ditch disc，ensure the maximum working width, structured highly, convenient adjustment，keep balance，low gravity reasonable distribution，work and driving stability，facilitate turning around, working surface is flat and level、Broken soil and stubble plowing are good property，turning radius small paddock，high efficiency.
This series disc harrow assembly has Tubelyss tire，both sides harrow group can be convenient and quick folded and lock through hydraulic system，Make when it comes to transport width of less than 2.5 meters and safety, accord with road traffic regulations, so as to realize the wide space operation, narrow space transportation metastasis.

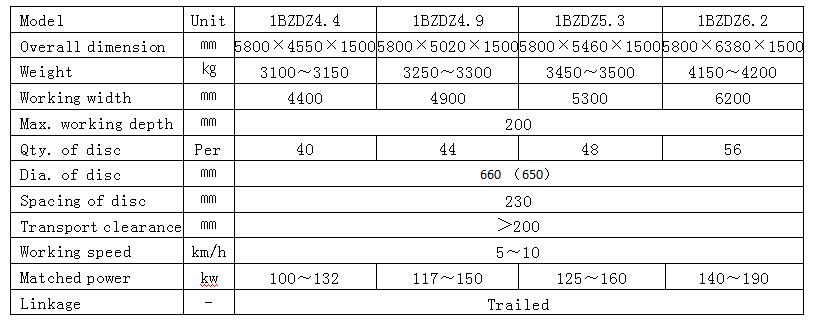

Technical parameters：
