1BZ(BX) SEMI-MOUNTED HEAVY-DUTY OFFSET DISC HARROW

Product introduction：
1BZ（BX） series Semi-mounted heavy-duty off-set disc harrows are mainly used for cleaning away stubble of plants before tillage, or uncultivated land and in sticky heavy clay soil fields or crushing clods after tillage. Maximum harrowing depth on uncultivated land can reach 18cm. They could also be used as a plow for primary tillage in dry cultivated fields. Their discs have been divided into front and rear two gangs notched disc, the dislocation of the design for front and rear disc gang, and disc gang on both sides of V to disc overall non-symmetrical, work Angle can be adjusted. The surface of the field after harrowing is level and the crushing land clearing ability of the harrow is satisfactory.
The series disc harrows are all fitted with a hydraulic rubber wheel for transportation at afterbody, the wheels were turning swiftly in all directions. They are easy to be hooking up, simple to be adjusted, and easy to be transported and change direction on the edge of fields, stable driving and good pass ability.

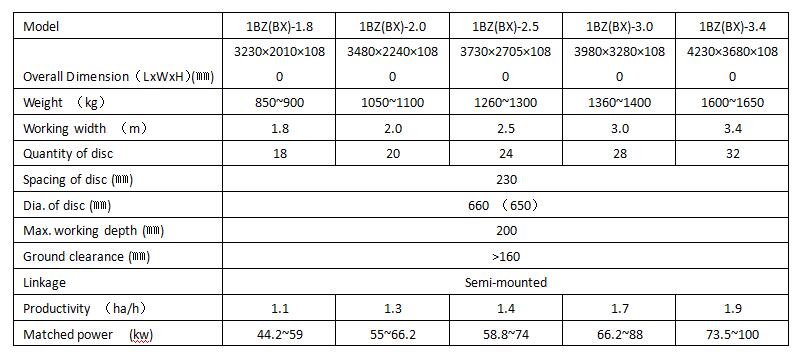

Technical parameters：
