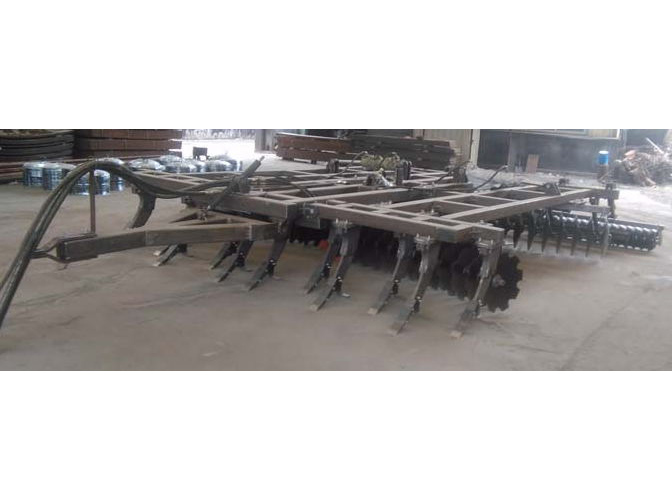

1LSZZ Wing Folded Combined Subsoiling Soil Preparation Machine

Product introduction：
The wing folded combined subsoiling soil preparation machine includes subsoiler, notched disc gang,plain disc gang,spike tooth,flat scraper, broken soil roller,crackdown roller, longitudinal successively and arrange composition. The ripper can loose the subsoil in the front of harrow, and together with symmetrical show X form permutation two columns disc harrow. The harrow can adapt different plant,the conditions of field and soil,configuration to completion at residue management,loose soil,crushing techniques mixing namely,flat surfaces and control compaction,many other procedure homework,formed surface smooth,soil finely,on the ideal of virtual under the bed reality.Improve stubble processing,techniques mixing and permeability of soil,water and the absorption of nutrients,the quality of the soil tillage,achieve crop yields higher.
The wing folded combined subsoiling soil preparation machine′s both sides group can be quick folded and lock through hydraulic system，Make when it comes to transport width of less than 3 meters and safety, so as to realize the wide space operation, narrow space transportation metastasis.

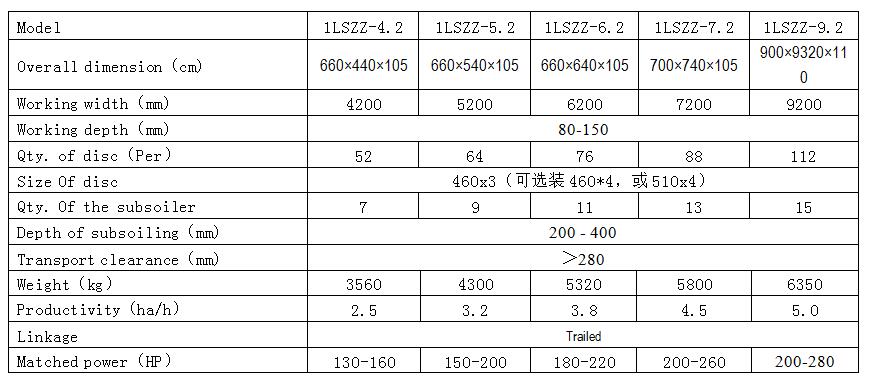

Technical parameters：
